Tehno Utilaj Service includes a metal-working enterprise, which was created for its needs, but due to the growth of the enterprise, the opportunity arose to work with third-party customers. The main activity of the enterprise is the implementation of turning and milling work on both manual and CNC machines, laser cutting, hob milling, flat and round grinding, erosion treatment, heat treatment, and various platings. Manufacturing and developing parts for instruments and various equipment by request.

We have high-precision and automated machine equipment. Our company provides relatively low market prices for products and high quality, with timely execution of works.

We provide the following services:

  • turning on CNC machines,
  • milling on CNC machines,
  • laser metal cutting,
  • erosion treatment,
  • stamping, painting, welding parts

The production uses machines:


Erosion treatment

Electro-erosion treatment is a method of changing the shape, size, properties of the surface, which is use the effect of an electric discharge on the workpiece when using an electrode.

It is used to change the size of metal products – to obtain holes of various shapes, shaped cavities, profiled grooves and grooves in parts made of hard alloys, for tool hardening, cutting, etc.

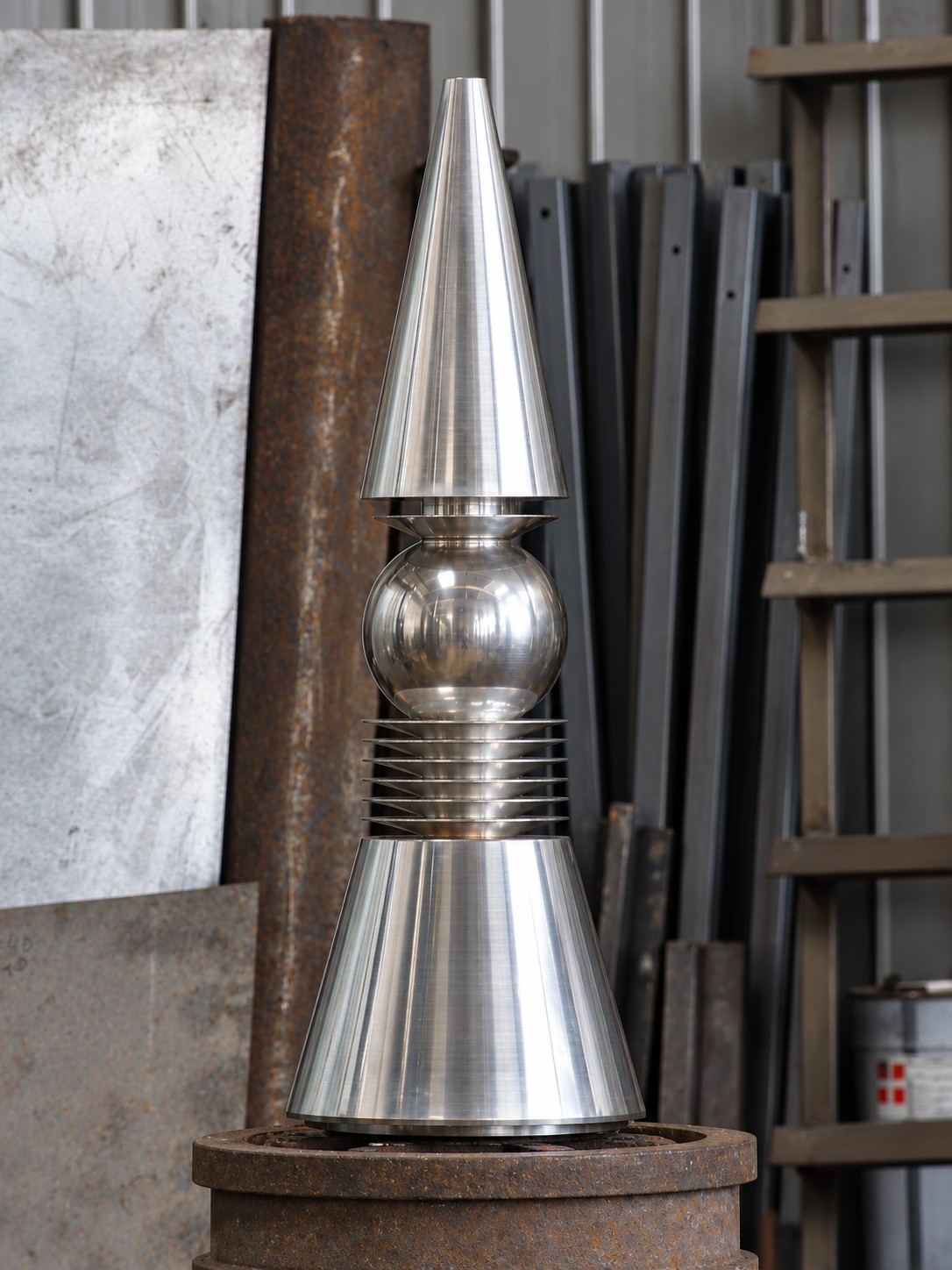

Turning the process of cutting a small layer from the workpiece until the desired shape is obtained, as well as the surface roughness and dimensions on special lathes. On lathes machined parts such as rotation bodies: shafts, gears, couplings, nuts, etc.

Range of turning capabilities:

  • diameter of parts from 0.8 to 400 mm,
  • length of parts up to 1500 mm,
  • making a thread of any profile,
  • machining accuracy on X / Z axis 0,005 / 0,005,
  • machining of parts with hardness up to 55 HRC,
  • workpiece material: steel and alloys of non-ferrous metals of any brand, polymeric materials,
  • surface roughness up to Ra 0.8 m.

Turning is machining for giving the required dimensions and shape by cutting the outer and inner surfaces of rotation, including cylindrical and tapered on lathes.

The main types of turning operations performed on machine tools:

  • turning outer cylindrical and end surfaces,
  • turning cylindrical holes,
  • turning of conic surfaces,
  • cutting external and internal threads,
  • turning of shaped surfaces,
  • turning grooves and grooves, cut the workpiece.

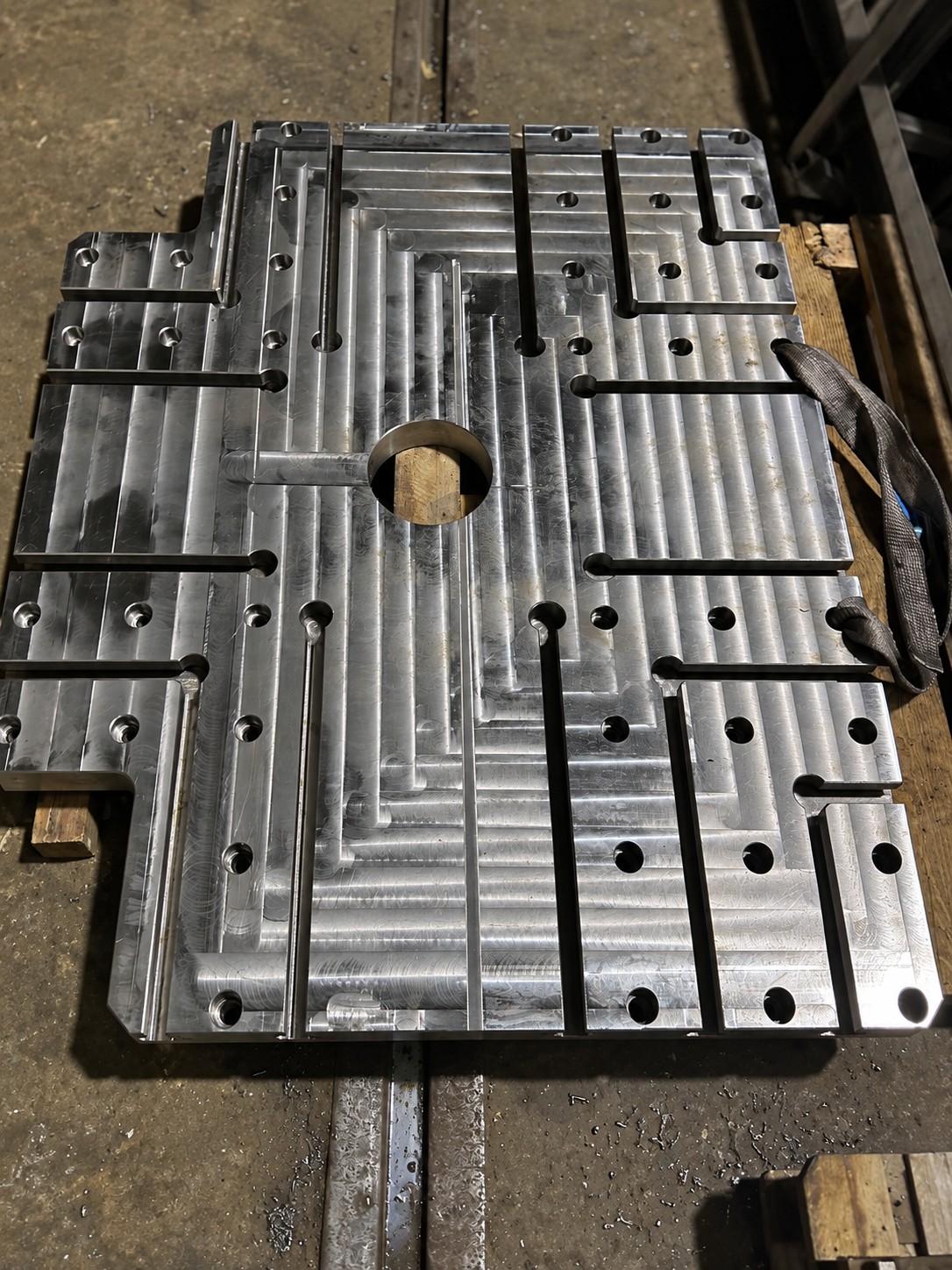

Milling parts

Milling allows you to cut a metal layer using a rotating, toothed cutter. With its help, you can cut in metals, grind, apply special patterns, engrave, as well as do turning and other work in various types of activity.

Range of milling capabilities:

  • width of parts up to 500 mm,
  • height of parts up to 500 mm,
  • length of parts up to 800 mm,
  • milling of threaded holes,
  • machining accuracy in X / Y / Z axis 0.005 / 0.005 / 0.005,
  • workpiece material: steel and alloys of non-ferrous metals of any brand, polymeric materials,
  • surface roughness up to Ra 0.8 ┬Ám

The principle of operation of the cutter is to perform rotational movements, moving in the direction of the machine feed, it cuts off a layer of metal that needs to be removed. The machine can grind the grooves, do the processing of various planes, boreholes in the details of non-ferrous metals, cast iron, steel.

When counter milling, the cutting tool, and the workpiece are moving towards each other. The cutter has an effect from top to bottom. With associated metalworking cutter is directed upwards from the bottom.

Types of milling:

  • end,
  • peripheral,
  • shaped.

Possible work:

  • shaped processing with a chisel,
  • turning along the cylinder,
  • trimming,
  • chamfering,
  • cones,
  • boring holes,
  • cutting internal and external threads,
  • drilling holes,
  • grinding of external surfaces.

Laser cutting metal

Range of laser cutting capabilities:

  • complex laser cutting-cutting sheet: the complex allows you to cut like metals and their alloys. Maximum sheet size 2000×6000 mm,
  • black steel and stainless steel, sheet thickness from 0.5 to 12mm,
  • stainless steel, sheet, clean cut with nitrogen “999” from 0.5 to 4mm,
  • aluminum and duralumin: maximum sheet thickness from 0.5 to 4mm.

Cutting metal with the help of an intense laser beam on the metal. Creates parts of any shape and high precision without deforming the material, with smooth edges that do not require additional processing.

High-precision equipment using a laser beam allows you to cut almost any material, regardless of the density and degree of thermal conductivity. Laser cutting of metal is made without deformation of the material and with precise edges.

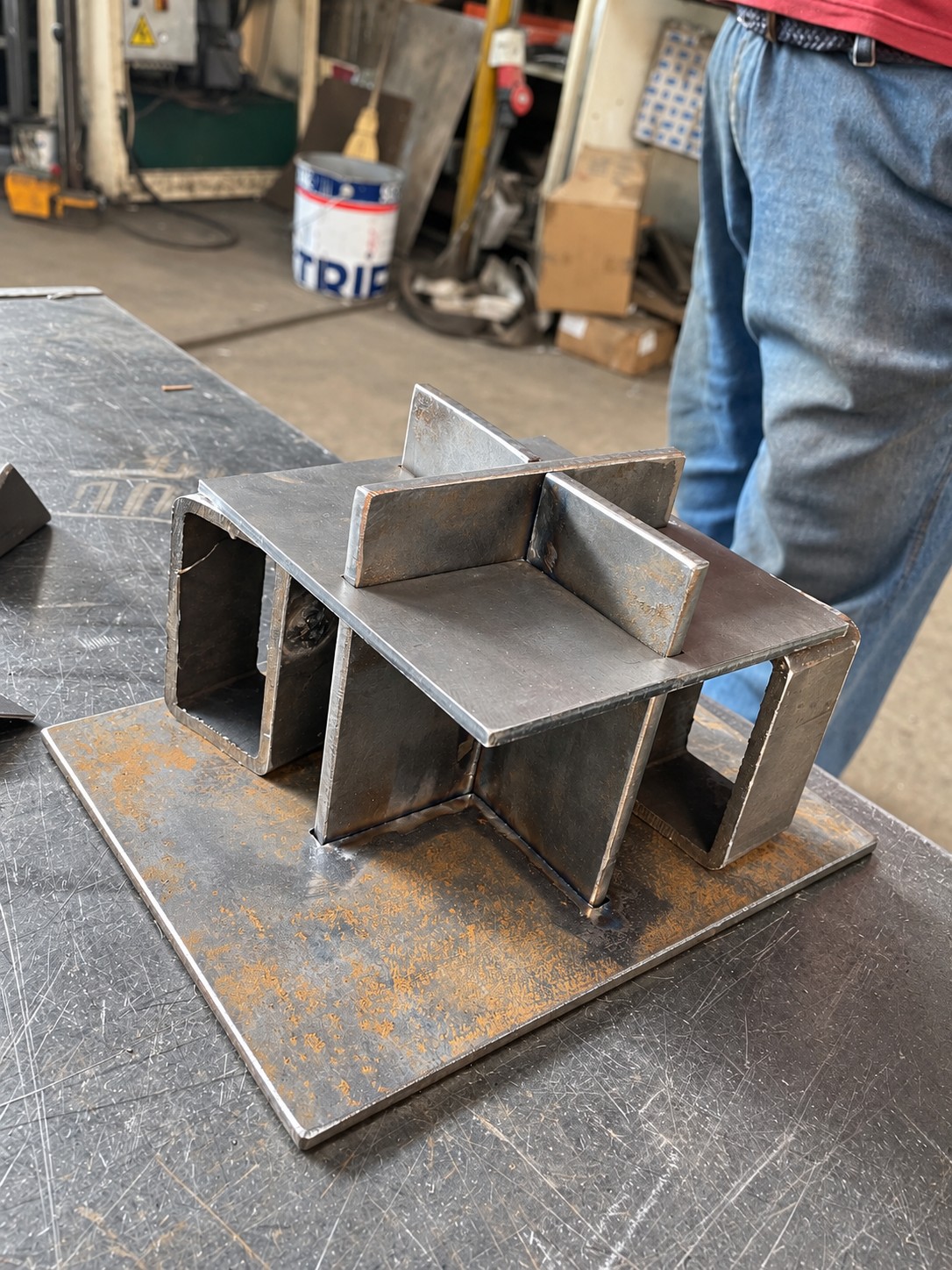

Stamping, bending, welding of parts

We perform the following types of plumbing and welding:

  • sheet metal bending,
  • painting details,
  • locksmith parts,
  • cold sheet stamping,
  • forming and cutting blanks,
  • sheet metal bending,
  • metalwork and welding,
  • contact welding.

The coordinate-penetrative press allows you to get from a sheet of metal almost any detail. Cutting the sheet with the help of coordinate punching of metal is used for the production of body parts, sheet metal parts of mechanisms, mounting plates, and brackets.

Differs in high efficiency and accuracy of cutting operations, punching, and molding. The machine allows you to process the product to the desired parameters, to make holes in the workpiece, to form an edging of parts, to make corrugation on the surface.


Lens housing
Centering module housing
Module cases
System holders for transfusion (drip)
Module cases
Night vision fixing brackets
